Schools Nexus Ducted Fume Cupboards
Generally, in compliance with Bulletin 88 and CLEAPSS for fume cupboards designed for primary use in schools and colleges.
Fixed or Semi-Mobile
Education type fume cupboards can be supplied with any combination of solid or toughened glass viewing panels to the two sides and/or rear to give excellent all round visibility.

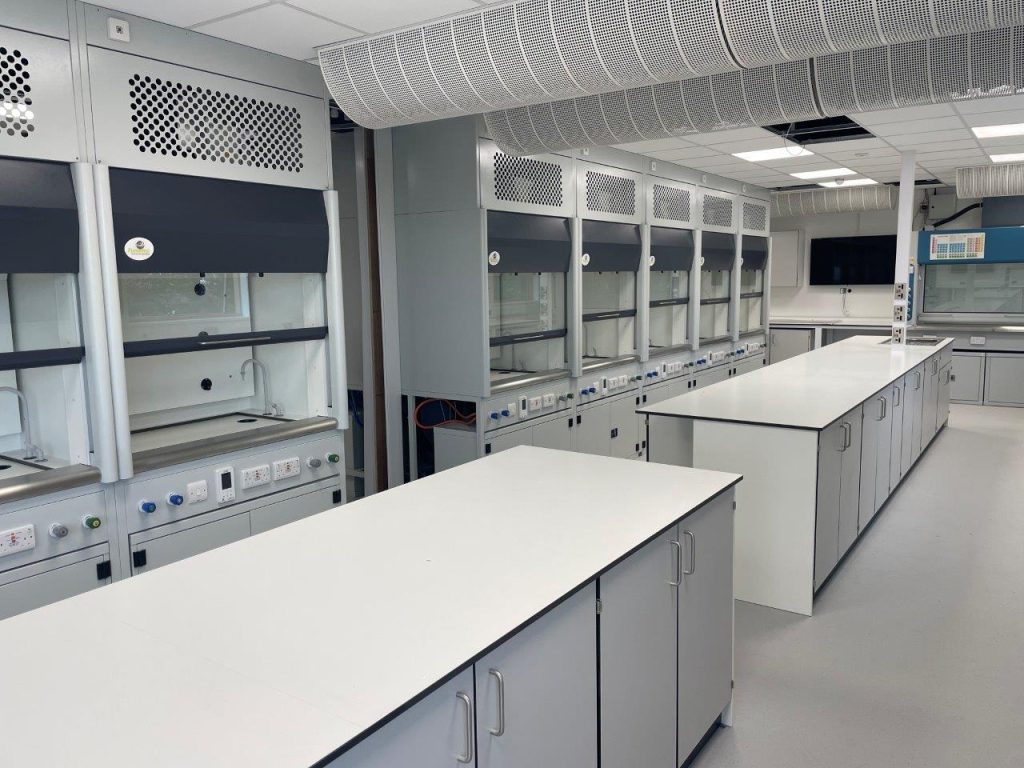

These fume cupboards can be supplied as fixed (on metal support frames or fitted on clients bench tops) or semi-mobile with lockable castors and flexible connections to the extract system and services.
Robust Fume Cupboards designed & manufactured for primary use in schools and colleges
Specification
- Radius designed intake profile giving excellent airflow characteristics and containment results.
- Twin skinned carcase in 16 swg zintec coated mild steel with epoxy powder coated finish.
- Aerodynamically designed sill in 316 grade stainless steel.

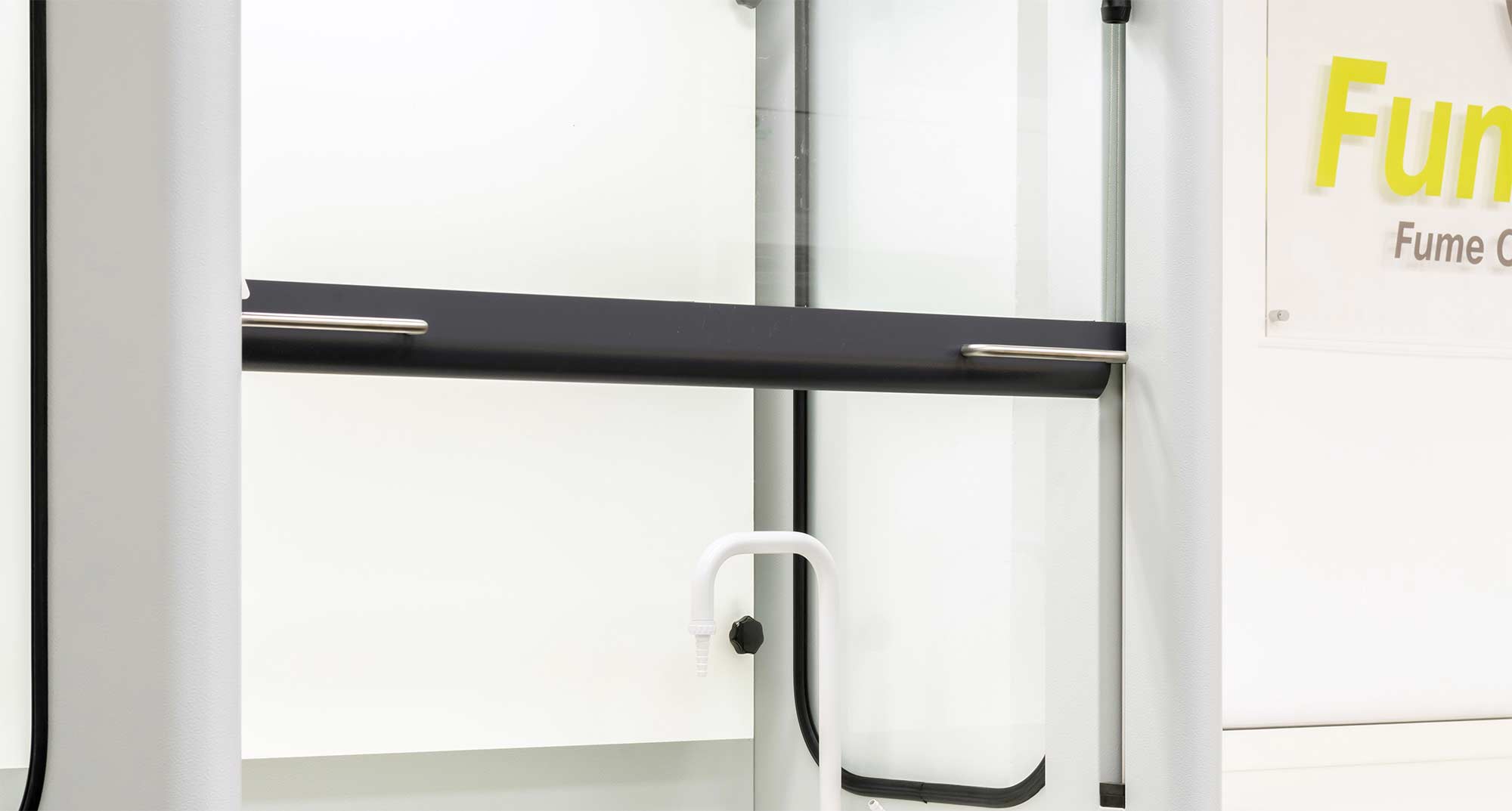

- Sash in 6mm thick toughened glass with full width aerodynamic finger grip.
- Sprung loaded guide channels to give the sash a smooth operation and excellent stability.
- Counter balanced sash with twin stainless steel cables running in pulleys for smooth movement.
- Fail safe sash mechanism to prevent rapid decent.
- Sash lock mechanism with automatic re-setting feature.
- Adjustable internal baffle to assist with balancing and even airflow distribution.
- Light box mounted externally out of airflow.
- Services are mounted on either the support frame fascia or on a plinth if bench mounted.
- Fume cupboards are pre-wired and pre-plumbed to ensure minimum site installation time.
Dimentions
- Width 1200mm, 1500mm, 1800mm & 2000mm Internal working width (External width less 300mm)
- Depth 900mm Internal working depth 610mm
- Height 1200mm Internal working height 1080mm
Materials include:
- High pressure solid grade laminate.
- One piece moulded cast epoxy.
- Stainless steel, one piece monolithic chambers or bolted panels.
- PVC/Polypropylene.
- Toughened glass.
- Epoxy coated steel or aluminium.
- Ceramic.
Education fume cupboards can be manufactured to clients’ own dimensional requirements including extra width, depth and internal height.
Standard Services:
- Worktop in solid grade laminate with marine edging.
- Double 13amp switched socket.
- Internal light with switch.

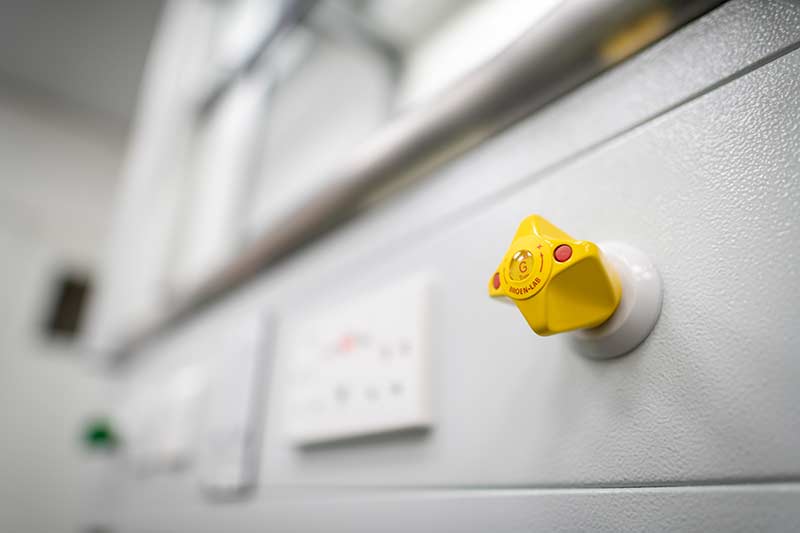

- Gas service outlet.
- Water service outlet.
- Drip cup.
- Fan on/off switch with indicator.
- Airflow indicator panel.
Manufactured and Tested to:
- BS 7258.
- Building Bulletin 88.
- Design Note 29.
- CLEAPSS.
Optional Extras
- Support frames.
- Infill panels to ceiling height with by-pass grilles.
- Alarm/control panels.
- Acid and/or solvent storage cupboards, in mild steel or timber, with or without extraction.
- One piece cast epoxy resin worktop.
- PVC/Polypropylene worktop.
