Nexus Primera Industrial Fume Cupboard
The Nexus Primera Fume Cupboard has been added to our industrial range of Standard Fume Cupboards. After undergoing extensive design and development including rigorous testing to UK Standards BS EN 14175, this product has proved to enhance containment solutions.
Our colour scheme ensures the product is well received by end users in the laboratory and safety features to complement our standard range include concealed sockets and superior cable management.
The unit has been designed at a height of 2075mm excluding infill panels.
Manufactured to UK Standards BS-EN-14175
Specification
- Radius designed intake profile giving excellent airflow characteristics and containment results.
- Twin skinned carcase in 16 swg zintec coated mild steel with epoxy powder coated finish.
- Aerodynamically designed sill in 316 grade stainless steel.
- Aerodynamically designed hinged side aerofoils
- Sash in 6mm thick toughened glass with full width aerodynamic finger grip.
- guide channels to give the sash a smooth operation and excellent stability.
- Counter balanced sash with twin stainless steel cables running in pulleys for smooth movement.
- Fail safe sash mechanism to prevent rapid decent.
- Sash lock mechanism with automatic re-setting feature.
- Adjustable internal baffle to assist with balancing and even airflow distribution.
- Light box mounted externally out of airflow.
- Electrical sockets concealed behind side aerofoils
- mechanical services mounted on front fascia
- Fume cupboards are pre-wired and pre-plumbed to ensure minimum site installation time.
Internal Lining & Worktops
- Internal linings and worktops are chosen for their suitability for the chemicals and processes used.
Materials include:
For general laboratory use.
For mounting on support frames or customer’s own bench/worktop.
- High pressure solid grade laminate.
- Stainless steel, one piece monolithic chambers or bolted panels.
- PVC/Polypropylene.
- Toughened glass.
- Epoxy coated steel
- Width 1200mm, 1500mm, 1800mm & 2000mm Internal working width (External width less 300mm)
- Depth 900mm Internal working depth 610mm
- Height 1200mm / Internal working height 1080mm
Fume cupboards can be manufactured to clients’ own dimensional requirements including extra width, depth and internal height
Optional Extras & Services

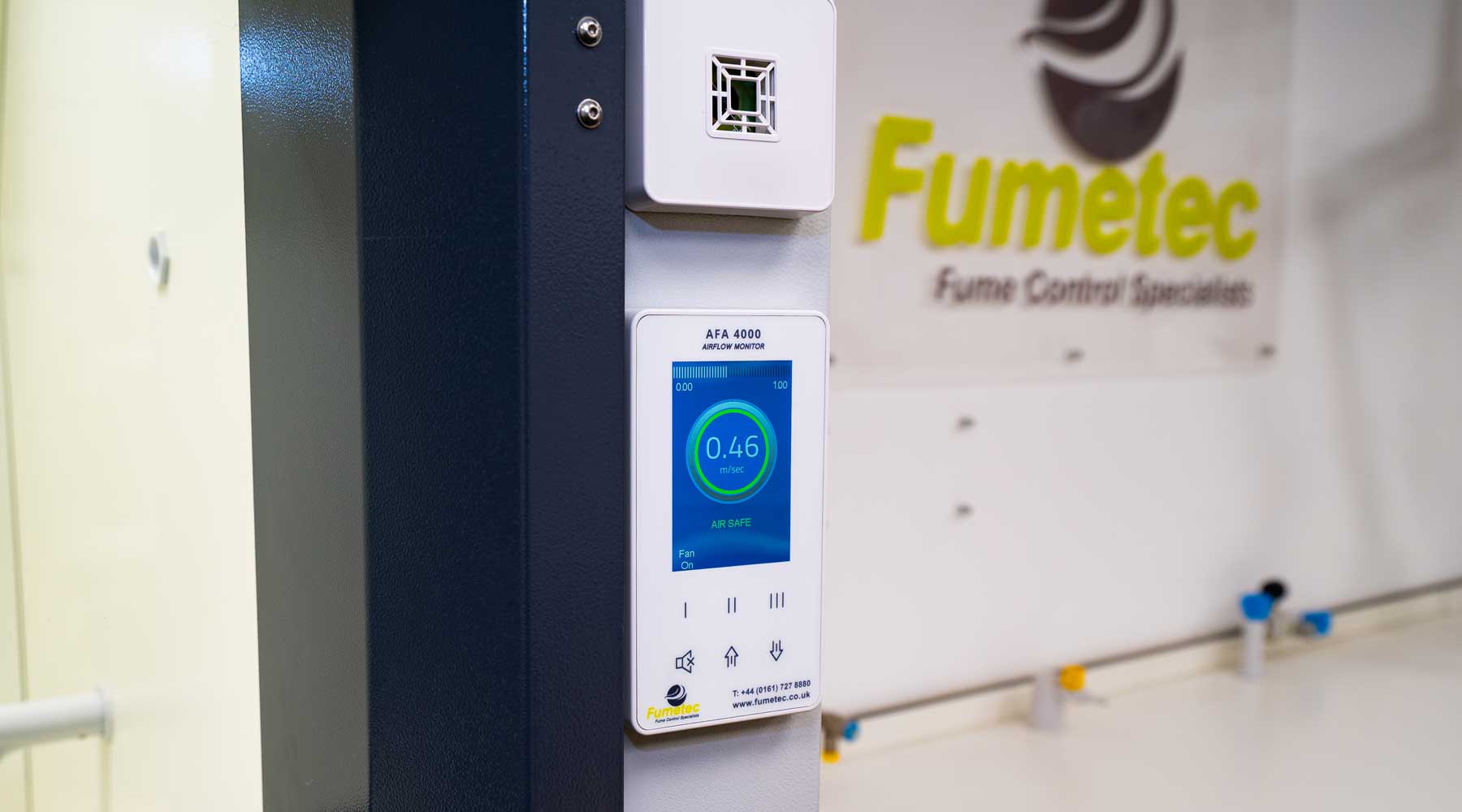

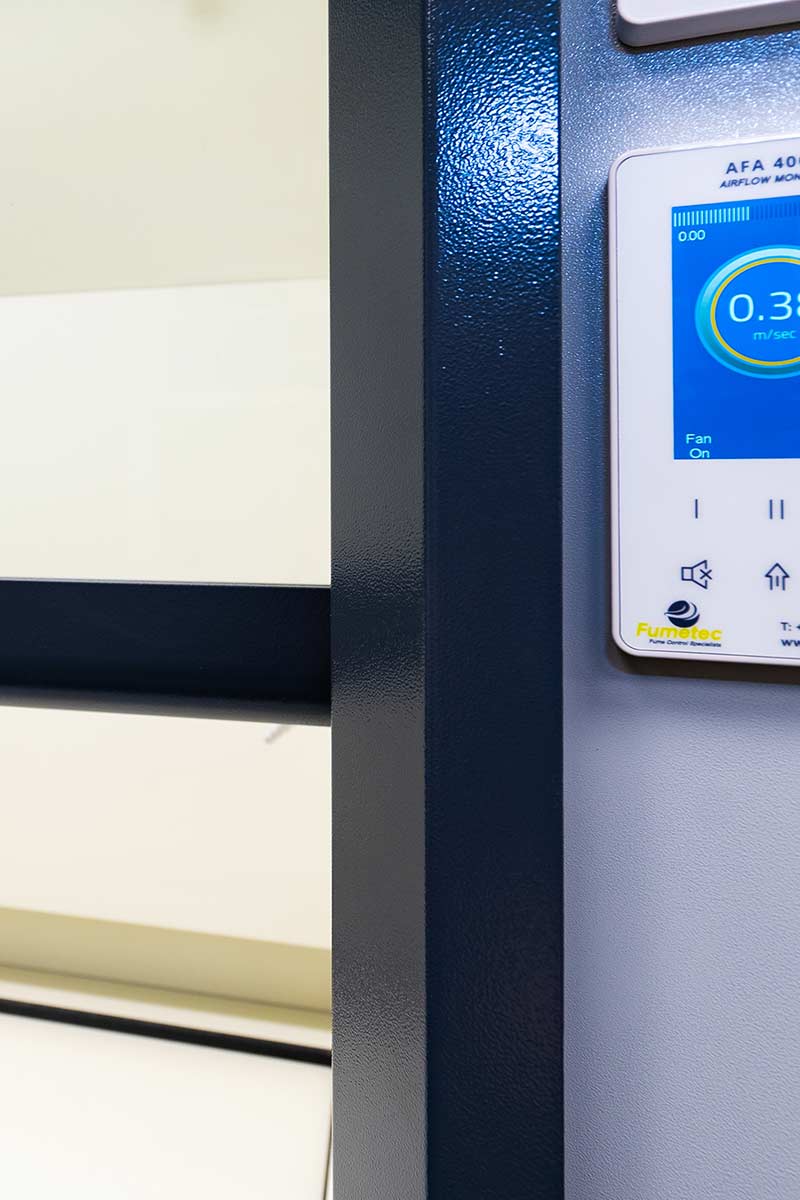

- Alarm/control panels.
- Water front controls & outlets, i.e. cold water, hot water, steam.
- Gas front controls & outlets, i.e. nitrogen, compressed air, natural gas, vacuum, hydrogen.
- Electrical socket outlets, i.e. single, double, RCD protected, spark proof.
- Waste outlets, i.e. circular drip cups, oval drip cups, sinks
- bottle traps.
- Support frames.
- Acid and/or solvent storage cupboards, in mild steel with or without extraction.
- Infill panels to ceiling height with by-pass grilles.
- Automatic fire extinguishers c/w flame detection unit.
